EF11.3498.0010.03 | SCHURTER
Panel plug C20, 2 pole, screw mounting, plug-in connection, black, EF11.3498.0010.03
Order No.: 59P0641
EAN: 4099891584610
MPN:
EF11.3498.0010.03
EF11-A324F160Z8-000-441-000
Series: EF11
Unit Price (€ / pc.)
48.9685 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

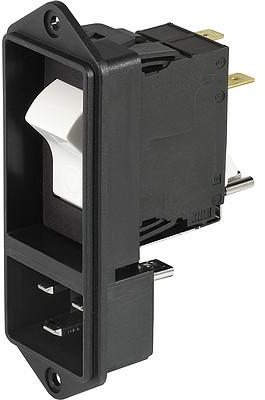

IEC Appliance Inlet C20, EF11.3498.0010.03, SCHURTER
Features
- Protection class I
- Circuit breaker type TA45
- Quick connect terminals 6.3 x 0.8 mm
Applications
- Suitable for use in equipment
- Suitable for appliances with protection class I
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Einbaustecker | |
| Bauform | gerade | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C20 | |
| Montage | Schraubmontage | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 16 A | |
| Nennstrom UL/CSA | 20 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | Yes | |
| Netzschalter vorhanden | Yes | |
| Polzahl Netzschalter | 2-polig | |
| Polzahl | 2-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
