GRF2.0215.11 | SCHURTER

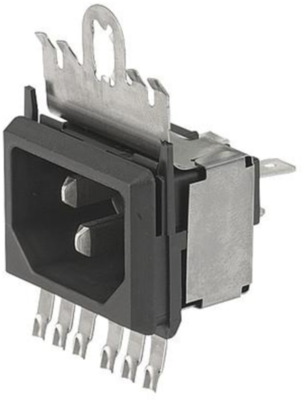

Plug C14, 3 pole, snap-in, plug-in connection, black, GRF2.0215.11
Unit Price (€ / pc.)
2.7727 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Plug, GRF2.0215.11, SCHURTER
IEC Appliance inlet C14 with Shielding, "Lock and Shield" Mounting.
Features
- Panel mountable
- 2 Functions
- All single elements are already wired
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 2
Technical specifications
| Connection | plug-in connection | |
| Version | plug | |
| Design | straight | |
| Colour | black | |
| IEC designation | C14 | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 10 A | |
| Rated current UL/CSA | 15 A | |
| Power switch available | No | |
| Panel thickness | 1.5 mm | |
| Pin number | 3 pole | |
| Pin temperature | 85 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
| Original Packaging | Carton with 40 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
