GSP4.010C.11 | SCHURTER

Plug C20 or C24, 3 pole/2 pole, screw mounting, solder connection, black, GSP4.010C.11

Order No.: 59P9464
EAN: 4099889873283
MPN:
GSP4.010C.11
Series: GSP4
SCHURTER
GSP4.010C.11 SCHURTER Device Connectors
Image may differ

Not suitable for new designs, LTB: 03.30.2025

Unit Price (€ / pc.)
1.8683 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
1.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.8683 €

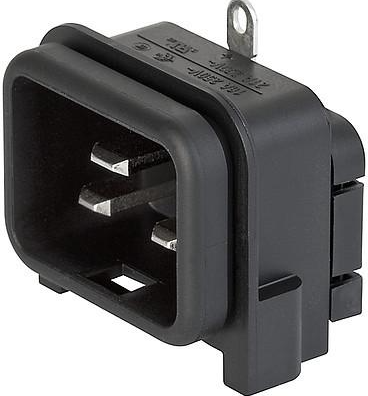

Plug, GSP4.010C.11, SCHURTER

IEC Appliance inlet C20/C24, Sandwhich mounting, PCB-terminals.

Features

  • Panel mountable
  • For PCB mounting
  • Housing material: Thermoplastic, UL 94V-0
  • V-Lock notch standard
Technical specifications
Connection solder connection
Version plug
Design angled
Colour black
IEC designation C20 or C24
Assembly screw mounting
Rated voltage IEC 250 V
Rated voltage UL/CSA 250 V
Rated current IEC 16 A
Rated current UL/CSA 20 A
Line filter present No
Switch illuminated No
Power switch available No
Panel thickness 1 mm
Pin number 3 pole/2 pole
Fuse holder present No
Pin temperature 70 °C
Type of locking Yes
Logistics
Country of origin CZ
Customs tariff number 85366990
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
