GSP4.0217.10 | SCHURTER
Plug C20 or C24, 3 pole/2 pole, snap-in, plug-in connection, black, GSP4.0217.10
Not suitable for new designs, LTB: 03.30.2025
Unit Price (€ / pc.)
2.0349 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

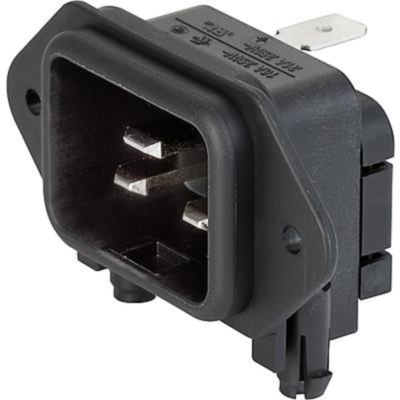

Plug, GSP4.0217.10, SCHURTER
IEC Appliance inlet C20/C24, Screw-on mounting, PCB-terminals.
Features
- Panel mountable
- For PCB mounting
- Housing material: Thermoplastic, UL 94V-0
- V-Lock notch standard
Technical specifications
| Connection | plug-in connection | |
| Version | plug | |
| Design | straight | |
| Colour | black | |
| IEC designation | C20 or C24 | |
| Assembly | snap-in | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 16 A | |
| Rated current UL/CSA | 20 A | |
| Line filter present | No | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin number | 3 pole/2 pole | |
| Fuse holder present | No | |
| Pin temperature | 70 °C | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
