KP01.1012.01 | SCHURTER

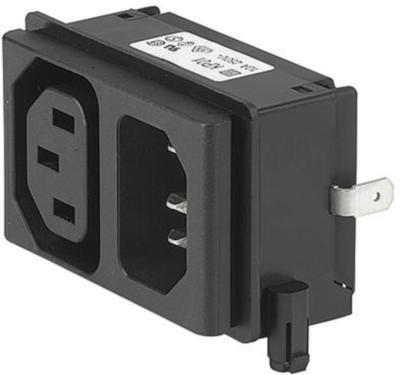

Combination element C14 + F, 3 pole, snap-in, PCB connection, black, KP01.1012.01
Unit Price (€ / pc.)
6.2832 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
6.28 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2832 €
10 pcs.
5.6525 €
50 pcs.
5.1408 €
100 pcs.
4.6291 €
*incl. VAT plus shipping costs
**Subject to prior sale
Distribution unit, KP01.1012.01, SCHURTER
IEC Appliance inlet C14 with appliance outlet F.
Features
- Panel mountable
- 2 Functions
- All single elements are already wired
- Housing material: Thermoplastic, UL 94V-0
- Protection class: 1
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Ausführung | Stecker/Buchse | |
| Bauform | abgewinkelt | |
| Farbe | schwarz | |
| IEC-Bezeichnung | C14 + F | |
| Montage | Snap-in | |
| Nennspannung IEC | 250 V | |
| Nennspannung UL/CSA | 250 V | |
| Nennstrom IEC | 10 A | |
| Nennstrom UL/CSA | 15 A | |
| Netzfilter vorhanden | No | |
| Netzschalter beleuchtet | No | |
| Netzschalter vorhanden | No | |
| Plattenstärke | 2 mm | |
| Polzahl | 3-polig | |
| Sicherungshalter vorhanden | No | |
| Stifttemperatur | 70 °C | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85366990 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
