High current choke, PCB mounting, 11.5 mH, 85 A, 3-143-902
Unit Price (€ / pc.)
84.5495 € *
Available: 0 pcs.
Leadtime: 17 Weeks **

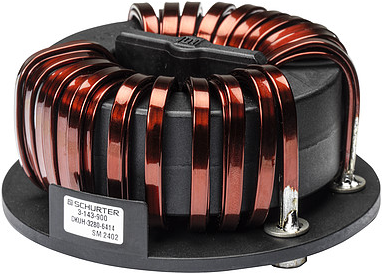

High current choke, 3-143-902, SCHURTER
The 3-143-902 is an compensated choke designed for high current applications in a single-phase system.
Features
- Ultrahigh current
- High DC voltage
- Open design optimizes heat dissipation
Applications
- Frequency converter
- Charge stations
- Photovoltaics
- Energy storage systems
Technical specifications
| Version | High current choke | |
| Design | PCB mounting | |
| DC current | 85 A | |
| DC resistance | 0.9 mΩ | |
| Height | 55 mm | |
| Inductance | 11.5 mH | |
| Measuring frequency | 1.6 MHz | |
| Tolerance | -30/+50 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
