DENO-40-0001 | SCHURTER
Ground wire choke, radial, 4 mH, 25 A, DENO-40-0001
Unit Price (€ / pc.)
8.9845 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
8.98 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9845 €
10 pcs.
8.1753 €
50 pcs.
7.3542 €
100 pcs.
6.6164 €
*incl. VAT plus shipping costs
**Subject to prior sale

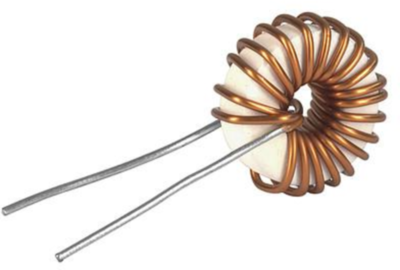

Ground wire choke, DENO-40-0001, SCHURTER
The DENO-40-0001 is a ground wire choke. It isolates the metal housing and the ground connection of the device from the mains ground. This solution effectively breaks any possible ground loops.
Features
- Ground wire chokes
- THT-terminals
Applications
- Separating the main earth line to periphery devices
- This type of chokes permits the building of a system free of ground wire loops
Technical specifications
| Version | ground wire choke | |
| Design | radial | |
| Width | 25 mm | |
| DC current | 25 A | |
| DC resistance | 10 mΩ | |
| Height | 25.5 mm | |
| Inductance | 4 mH | |
| Length | 25.5 mm |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
