DKFP-A22A-021J | SCHURTER

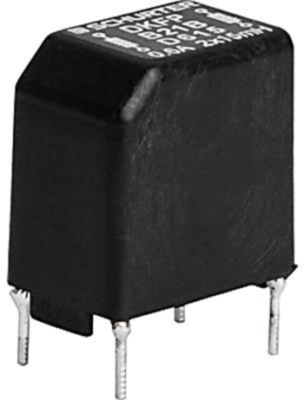

Suppressor choke, 1.1 mH, 2 A, DKFP-A22A-021J
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Leadtime: 40 Weeks **
Fixed inductor, DKFP-A22A-021J, SCHURTER
The DKFP-A22A-021J is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.
Features
- Current compensated choke
- THT-terminals
- High inductance and compact dimensions
- Multiple pin configurations
Applications
- Attenuation of common mode interferences
- Designed for 230/400 VAC applications
- DC drives and stepper motor controls
- Switching power supplies
Technical specifications
| Ausführung | Entstördrossel | |
| Breite | 14.5 mm | |
| Gleichstrom | 2 A | |
| Gleichstromwiderstand | 61 mΩ | |
| Höhe | 9.5 mm | |
| Induktivität | 1.1 mH | |
| Länge | 14.5 mm | |
| Toleranz | -30/+50 % |
Download
Logistics
| Ursprungsland | LK |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
