DKFP-B21B-1K6Q | SCHURTER

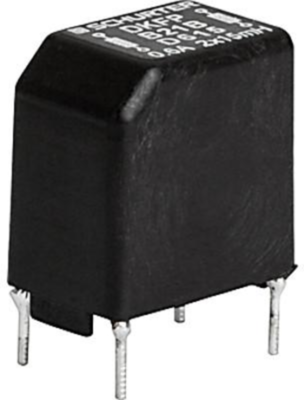

Suppressor choke, 6.8 mH, 1.2 A, DKFP-B21B-1K6Q
Unit Price (€ / pc.)
1.4637 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
Fixed inductor, DKFP-B21B-1K6Q, SCHURTER
The DKFP-B21B-1K6Q is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.
Features
- Current compensated choke
- THT-terminals
- High inductance and compact dimensions
- Multiple pin configurations
Applications
- Attenuation of common mode interferences
- Designed for 230/400 VAC applications
- DC drives and stepper motor controls
- Switching power supplies
Technical specifications
| Version | suppressor choke | |
| Width | 13 mm | |
| DC current | 1.2 A | |
| DC resistance | 219 mΩ | |
| Height | 21 mm | |
| Inductance | 6.8 mH | |
| Length | 19 mm | |
| Tolerance | -30/+50 % |
Download
Logistics
| Country of origin | LK |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
