DKIH-3358-40D2 | SCHURTER

Suppressor choke, radial, 0.15 mH, 40 A, DKIH-3358-40D2

Order No.: 59P8908
EAN: 4099889002737
MPN:
DKIH-3358-40D2
Series: DKIH-3
SCHURTER
DKIH-3358-40D2 SCHURTER Fixed Inductors

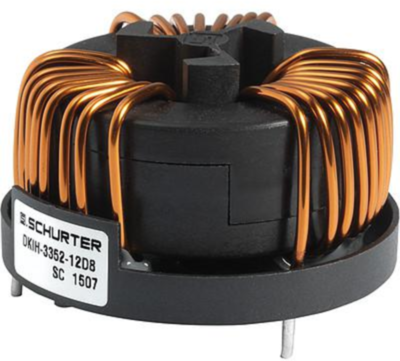

Image may differ
Unit Price (€ / pc.)
15.6247 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
15.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
15.6247 €

Suppressor inductor, DKIH-3358-40D2, SCHURTER

The DKIH-3358-40D2 is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.

Features

  • 3-phase choke
  • Flexible wire
  • Flange for mounting onto printed circuit board
  • THT-terminals

Applications

  • Frequency converter
  • Charge stations
  • UPS-systems
  • Switching power supplies
Technical specifications
Version suppressor choke
Design radial
DC current 40 A
DC resistance 0.6 mΩ
Height 31 mm
Inductance 0.15 mH
Tolerance -30/+50 %
Logistics
Country of origin SK
Customs tariff number 85045000
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
