Suppressor choke, 3 mH, 20 A, DKIP-0231-2003

Order No.: 59P8928
EAN: 4099889002812
MPN:
DKIP-0231-2003
Series: DKIP-1
SCHURTER
DKIP-0231-2003 SCHURTER Fixed Inductors

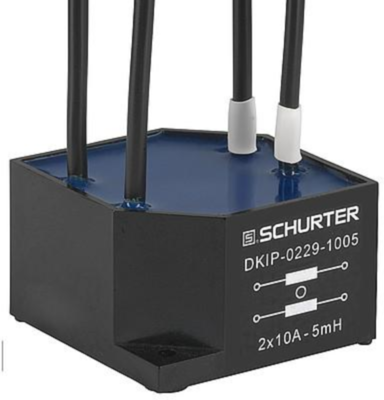

Image may differ
Unit Price (€ / pc.)
31.4517 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
31.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.4517 €

Suppressor inductor, DKIP-0231-2003, SCHURTER

The DKIP-0231-2003 is a current compensated choke. It is used for limiting currents in electrical lines, for intermediate storage of energy, for impedance matching or for filtering.

Features

  • 3-phase choke
  • Flexible wire
  • Flange for mounting onto printed circuit board
  • Fully potted resign

Applications

  • Placed in front of frequency converter
  • Stepper motor drives
  • UPS-systems
  • Inverter
Technical specifications
Version suppressor choke
Width 80 mm
DC current 20 A
DC resistance 10 mΩ
Height 50.8 mm
Inductance 3 mH
Length 80 mm
Tolerance -30/+50 %
Logistics
Country of origin SK
Customs tariff number 85045000
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
