DLF-18-0004 | SCHURTER
Linear choke, radial, 0.11 mH, 1.5 A, DLF-18-0004
Not suitable for new designs, LTB: 03.30.2025
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Leadtime: 41 Weeks **

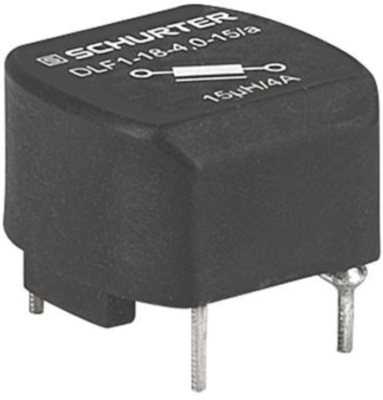

Linear choke, DLF-18-0004, SCHURTER
The DLF-18-0004 is a linear choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.
Features
- Linear choke
- Inductor horizontally positioned in housing
- THT-terminals
Applications
- Smoothing RFI suppression choke
- RFI suppression choke
- Chopper amplifiers
- DC drives and stepper motor controls
Technical specifications
| Version | linear choke | |
| Design | radial | |
| Width | 18.2 mm | |
| DC current | 1.5 A | |
| DC resistance | 150 mΩ | |
| Height | 12.4 mm | |
| Inductance | 0.11 mH | |
| Length | 17.8 mm | |
| Tolerance | ±15 % |
Download
Logistics
| Country of origin | LK |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
