DLFL-0125-08D5 | SCHURTER
Linear/Saturating choke, radial, 0.5 mH, 8 A, DLFL-0125-08D5
Unit Price (€ / pc.)
17.9571 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
17.96 € *
Price list
Quantity
Price per unit*
1 pcs.
17.9571 €
10 pcs.
16.5172 €
50 pcs.
15.3629 €
100 pcs.
13.9825 €
*incl. VAT plus shipping costs
**Subject to prior sale

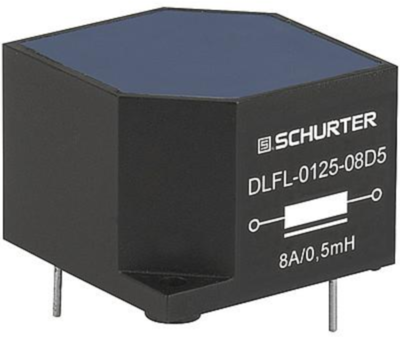

Linear/Saturating choke, DLFL-0125-08D5, SCHURTER
The DLFL-0125-08D5 is a linear/saturating choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.
Features
- Linear/saturating choke
- Flexible wire
- Low noise development by using iron powder toroids instead of conventional iron lamination cores
- Fully potted resign
Applications
- Phase angle control circuits with thyristors, triacs or transistors
- The choke acts at its optimum when it is mounted directly at the interference originator (thyristor, triac)
Technical specifications
| Ausführung | Linear-/Sättigungs-Drossel | |
| Bauform | radial | |
| Breite | 40 mm | |
| Gleichstrom | 8 A | |
| Gleichstromwiderstand | 54 mΩ | |
| Höhe | 30.8 mm | |
| Induktivität | 0.5 mH | |
| Länge | 40 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
