DLH-31-0001 | SCHURTER

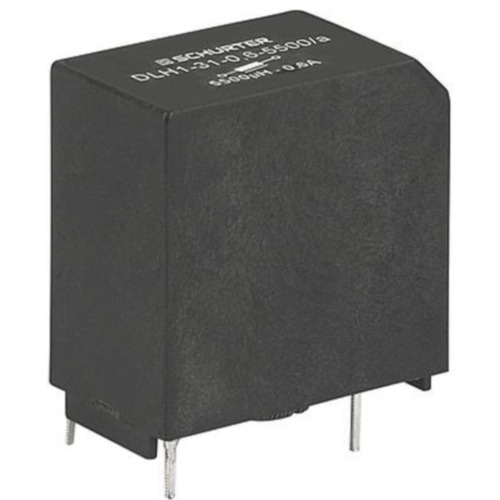

Linear choke, THT, 5.5 mH, 600 mA, DLH-31-0001

Order No.: 59P9003
EAN: 4099889003505
MPN:
DLH-31-0001
Series: DLH
SCHURTER
DLH-31-0001 SCHURTER Fixed Inductors
Image may differ
Unit Price (€ / pc.)
4.9147 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
Total Price:
4.91 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9147 €
10 pcs.
4.4268 €
50 pcs.
4.0341 €
100 pcs.
3.6295 €
*incl. VAT plus shipping costs
**Subject to prior sale

Linear choke, DLH-31-0001, SCHURTER

The DLH-31-0001 is a linear choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.

Features

  • Linear choke
  • Wire leads
  • Open version without socket and chassis

Applications

  • Smoothing RFI suppression choke
  • RFI suppression choke
  • DC drives and stepper motor controls
  • Switching power supplies
Technical specifications
Version linear choke
Design THT
Width 18.5 mm
DC current 600 mA
DC resistance 3.6 Ω
Height 33 mm
Inductance 5.5 mH
Length 31.5 mm
Tolerance ±15 %
Logistics
Country of origin LK
Customs tariff number 85045000
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
