DS1-20-0001 | SCHURTER

Storage choke, radial, 1 mH, DS1-20-0001

Order No.: 59P9026
EAN: 4099889003710
MPN:
DS1-20-0001
Series: DS
SCHURTER
DS1-20-0001 SCHURTER Fixed Inductors

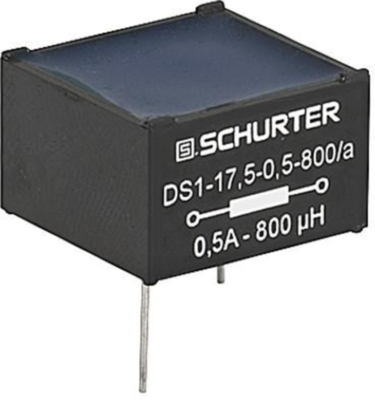

Image may differ
Unit Price (€ / pc.)
6.2475 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
Total Price:
6.25 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2475 €
10 pcs.
5.6882 €
50 pcs.
5.1170 €
100 pcs.
4.6053 €
*incl. VAT plus shipping costs
**Subject to prior sale

Storage choke, DS1-20-0001, SCHURTER

The DS1-20-0001 is a storage choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.

Features

  • Storage choke
  • Constant inductance at high alternating field modulation and large DC magnetization
  • Reduced magnetic reversal
  • THT-terminals

Applications

  • Storage of energy in switched power supplies
  • Switch-mode
  • Chopper amplifiers
  • DC drives and stepper motor controls
Technical specifications
Version storage choke
Design radial
Width 20 mm
DC resistance 700 mΩ
Height 15 mm
Inductance 1 mH
Length 20 mm
Tolerance ±15 %
Logistics
Country of origin LK
Customs tariff number 85045000
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
