DS1-40-0004 | SCHURTER

Storage choke, radial, 0.1 mH, DS1-40-0004

Order No.: 59P9041
EAN: 4099889003857
MPN:
DS1-40-0004
Series: DS
SCHURTER
DS1-40-0004 SCHURTER Fixed Inductors

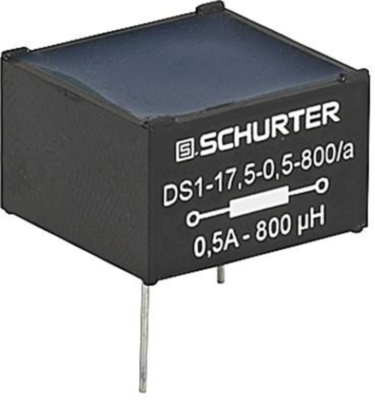

Image may differ
Unit Price (€ / pc.)
17.0289 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
Total Price:
17.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
70 pcs.
17.0289 €

Storage choke, DS1-40-0004, SCHURTER

The DS1-40-0004 is a storage choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.

Features

  • Storage choke
  • Constant inductance at high alternating field modulation and large DC magnetization
  • Reduced magnetic reversal
  • THT-terminals

Applications

  • Storage of energy in switched power supplies
  • Switch-mode
  • Chopper amplifiers
  • DC drives and stepper motor controls
Technical specifications
Version storage choke
Design radial
Width 40 mm
DC resistance 26 mΩ
Height 20 mm
Inductance 0.1 mH
Length 40 mm
Tolerance ±15 %
Logistics
Country of origin LK
Customs tariff number 85045000
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
