DSF-28-0006 | SCHURTER

Storage choke, radial, 0.075 mH, 3.15 A, DSF-28-0006

Order No.: 59P9058
EAN: 4099889004021
MPN:
DSF-28-0006
Series: DSF
SCHURTER
DSF-28-0006 SCHURTER Fixed Inductors

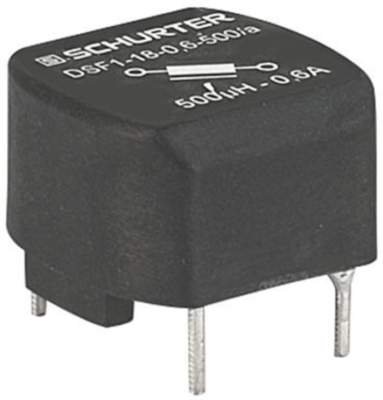

Image may differ
Unit Price (€ / pc.)
4.2126 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
Total Price:
4.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.2126 €

Storage choke, DSF-28-0006, SCHURTER

The DSF-28-0006 is a storage choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.

Features

  • Storage choke
  • Inductor horizontally positioned in housing
  • Reduced magnetic reversal
  • THT-terminals

Applications

  • Storage of energy in switched power supplies
  • Switch-mode
  • Chopper amplifiers
  • DC drives and stepper motor controls
Technical specifications
Version storage choke
Design radial
Width 27.4 mm
DC current 3.15 A
DC resistance 45 mΩ
Height 16.5 mm
Inductance 0.075 mH
Length 28.3 mm
Tolerance ±15 %
Logistics
Country of origin LK
Customs tariff number 85045000
MSL MSL 1
Original Packaging Carton with 40 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
