DSO1-40-0001 | SCHURTER
Storage choke, radial, 1 mH, DSO1-40-0001
Unit Price (€ / pc.)
15.8865 € *
Available: 0 pcs.
Leadtime: 40 Weeks **
Total Price:
15.89 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8865 €
10 pcs.
14.6132 €
50 pcs.
13.4470 €
100 pcs.
12.2332 €
*incl. VAT plus shipping costs
**Subject to prior sale

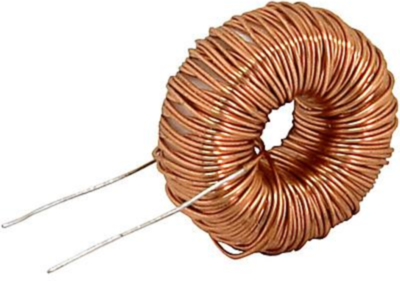

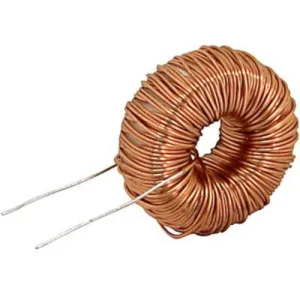

Storage choke, DSO1-40-0001, SCHURTER
The DSO1-40-0001 is a storage choke that is used for energy storage in SMPS's. It is made of iron or metal powder cores with one winding.
Features
- Storage choke
- Constant inductance at high alternating field modulation and large DC magnetization
- Open version without socket and chassis
- Reduced magnetic reversal
Applications
- Storage of energy in switched power supplies
- Switch-mode
- Chopper amplifiers
- DC drives and stepper motor controls
Technical specifications
| Ausführung | Speicherdrossel | |
| Bauform | radial | |
| Gleichstromwiderstand | 190 mΩ | |
| Höhe | 14 mm | |
| Induktivität | 1 mH | |
| Länge | 39 mm | |
| Toleranz | ±15 % |
Download
Logistics
| Ursprungsland | LK |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
