0031.1185 | SCHURTER

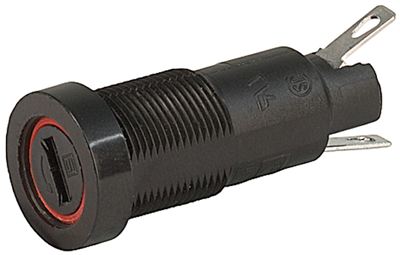

Fuse holder, 5 x 20 mm, 10 A, 250 V, snap-in, 0031.1185
Unit Price (€ / pc.)
3.3320 € *
Available: 486 pcs.
Leadtime: 7 Weeks **
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3320 €
10 pcs.
2.9274 €
100 pcs.
2.5704 €
200 pcs.
2.4752 €
800 pcs.
2.3086 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fuse holders for 5 x 20 mm G fuses, series FEF, type Schurter 0031.
Compliant with IEC 60127-6, with bushing mount and bayonet lock cap with slot or finger grip; Rated voltage: 250 VAC. Rated current: 10 A. Socket material: Duroplast, UL 94 V-0, black. Connections: tinned copper alloy. Connection type: solder terminals. Degree of protection: IP 40 or IP 54, suitable for devices of safety class I or II to IEC 61140. Touch protection category: PC2. Climate category: 40/085/21 compliant with IEC 60068-1. Certifications: VDE, UL, CSA.
Bayonet lock cap with slot, type 0031.
Technical attributes (type, degree of protection): 0031.1185, IP 54
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung der Kappe | Schlitz | |
| Ausführung | geschlossen | |
| Befestigungsart | Snap-in | |
| Berührungsschutz | PC2 | |
| Einbaudurchmesser | 12 mm | |
| Für Sicherung | 5 x 20 mm | |
| Nennspannung | 250 V | |
| Nennstrom | 10 A | |
| Schutzart (IP) | IP54 |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Karton mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
