0031.1681 | SCHURTER

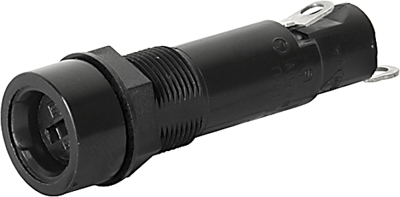

Name: Fuse holder, 5 x 20 mm/6.3 x 32 mm, 10 A, 250 V, central Mounting, 0031.1681
Brand: SCHURTER
SKU: 46G6212
Price: 1.45 EUR
Availability: OutOfStock

Fuse holder, 5 x 20 mm/6.3 x 32 mm, 10 A, 250 V, central Mounting, 0031.1681

Order No.: 46G6212

EAN: 4099889127324

MPN:

0031.1681

Series: FEU (Med)

Image may differ

Key Specification:

For Fuse 5 x 20 mm/6,3 x 32 mm

Version geschlossen

Connection Lötanschluss

Type of mounting Zentralbefestigung

Installation diameter 13 mm

Ordering Information:

Lieferung ohne zwingend notwendige Renkverschlusskappe, bitte separat bestellen

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.4518 € *

Available: 0 pcs.

Leadtime: 10 Weeks **

Total Price:

1.45 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Fuse holder, 0031.1681, SCHURTER

Shock-safe fuse-holder, fuse-link: 5 x 20 / 6.3 x 32 mm, IP 40.

Applications

Medical equipment

Technical specifications

	For Fuse	5 x 20 mm/6,3 x 32 mm
	Version	geschlossen
	Connection	Lötanschluss
	Type of mounting	Zentralbefestigung
	Installation diameter	13 mm
	Version of the cap	Schlitz
	Rated current	10 A
	Rated voltage	250 V
	Touch protection	PC2
	Degree of protection (IP)	IP40
