0031.3558 | SCHURTER

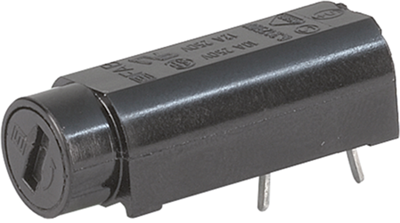

Fuse holder, 5 x 20 mm, 12 A, 250 V, PCB mounting, 0031.3558
Unit Price (€ / pc.)
2.6656 € *
Available: 3,316 pcs.
Leadtime: 7 Weeks **
Total Price:
2.67 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6656 €
10 pcs.
2.3443 €
100 pcs.
2.0587 €
200 pcs.
1.9873 €
800 pcs.
1.8564 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fuse holders for 5 x 20 mm G fuses, series FAB, type Schurter 0031.
Compliant with IEC 60127-6, for axial PCB mounting, with beaded terminals and bayonet lock cap with slot; Rated voltage: 250 VAC. Rated current: 10 A (VDE), 12 A (UL/CSA). Socket material: Duroplast, UL 94 V-0, black. Connections: tinned copper alloy. Degree of protection: IP 40, suitable for devices of safety class I or II to IEC 61140. Touch protection category: PC2. Climate category: 40/085/21 to IEC 60068-1. Certifications: VDE, UL, CSA.
Type: 0031.3558, fuse holder
Technical specifications
| For Fuse | 5 x 20 mm | |
| Version | geschlossen | |
| Connection | Lötanschluss | |
| Type of mounting | Leiterplattenmontage | |
| Installation diameter | 10 mm | |
| Version of the cap | Schlitz | |
| Rated current | 12 A | |
| Rated voltage | 250 V | |
| Touch protection | PC2 | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85363010 |
| Original Packaging | Karton mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
