0031.3981 | SCHURTER

Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, 0031.3981

Order No.: 46G5762
EAN: 4099889126563
MPN:
0031.3981
Series: FBS2

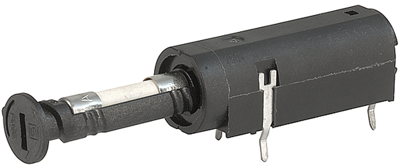

0031.3981 SCHURTER Fuse Holders Image 1
0031.3981 SCHURTER Fuse Holders Image 2
Image may differ
Unit Price (€ / pc.)
2.7251 € *
Available: 169 pcs.
Leadtime: 7 Weeks **
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
10 pcs.
2.4038 €
100 pcs.
2.1063 €
200 pcs.
2.0230 €
800 pcs.
1.9040 €
*incl. VAT plus shipping costs
**Subject to prior sale

Fuse holders for 5 x 20 mm G fuses, series FBS2, type Schurter 0031.

Compliant with IEC 60127-6, for axial PCB mounting, with beaded terminals and captive bayonet lock cap with slot; Rated voltage: 250 VAC. Rated current: 10 A. Socket material: thermoplastic, UL 94 V-0, black. Connections: tinned copper alloy. Degree of protection: IP 40, suitable for devices of safety class I or II to IEC 61140. Touch protection category: PC3. Climate category: 40/085/21 to IEC 60068-1. Certifications: VDE, UL, CSA.

Type: 0031.3981, fuse holder

Technical specifications
For Fuse 5 x 20 mm
Version geschlossen
Connection Lötanschluss
Type of mounting Zentralbefestigung
Installation diameter 13 mm
Version of the cap Schlitz
Rated current 10 A
Rated voltage 250 V
Touch protection PC3
Degree of protection (IP) IP40
Logistics
Country of origin CH
Customs tariff number 85363010
Original Packaging Karton mit 100 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
