3101.0010 | SCHURTER

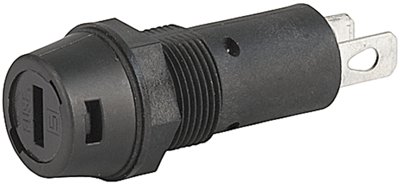

Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, 3101.0010
Unit Price (€ / pc.)
1.9873 € *
Available: 882 pcs.
Leadtime: 6 Weeks **
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
25 pcs.
1.6779 €
100 pcs.
1.5589 €
200 pcs.
1.4875 €
800 pcs.
1.3685 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fuse holders for 5 x 20 mm G fuses, series FPG1, type Schurter 3101.
Compliant with IEC 60127-6, with bushing mount and bayonet lock cap with slot or finger grip; Rated voltage: 250 VAC. Rated current: 10 A (VDE), 16 A (UL/CSA). Socket material: thermoplastic, UL 94 V-0, black. Connections: tinned copper alloy. Connection type: soldering or tab terminals 4.8 x 0.5 mm. Degree of protection: IP 40 or IP 67, suitable for devices of safety class I or II to IEC 61140. Touch protection category: PC2. Climate category: 40/085/21 to IEC 60068-1. Certifications: VDE, UL, CSA.
Degree of protection IP 40, type 3101.
Technical attributes (type, bayonet lock cap type, connection type): 3101.0010, slot, solder terminals
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung der Kappe | Schlitz | |
| Ausführung | geschlossen | |
| Befestigungsart | Zentralbefestigung | |
| Berührungsschutz | PC2 | |
| Einbaudurchmesser | 12 mm | |
| Für Sicherung | 5 x 20 mm | |
| Nennspannung | 250 V | |
| Nennstrom | 10 A | |
| Schutzart (IP) | IP40 |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Karton mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
