3101.0031 | SCHURTER
Fuse holder, 5 x 20 mm, 10 A, 250 V, snap-in, 3101.0031
Unit Price (€ / pc.)
1.8564 € *
Available: 197 pcs.
Leadtime: 6 Weeks **
Total Price:
1.86 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8564 €
10 pcs.
1.6779 €
50 pcs.
1.5232 €
100 pcs.
1.3685 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fuse holders for 5 x 20 mm G fuses, series FPG3, type Schurter 3101.
Compliant with IEC 60127-6, for front snap-in mounting, bayonet lock cap with slot or finger grip; Rated voltage: 250 VAC. Rated current: 10 A (VDE), 16 A (UL/CSA). Socket material: thermoplastic, UL 94 V-0, black. Connections: tinned copper alloy. Connection type: soldering or tab terminals 4.8 x 0.5 mm. Degree of protection: IP 40, suitable for devices of safety class I or II to IEC 61140. Touch protection category: PC2. Climate category: 40/085/21 compliant with IEC 60068-1. Certifications: VDE, UL, CSA.

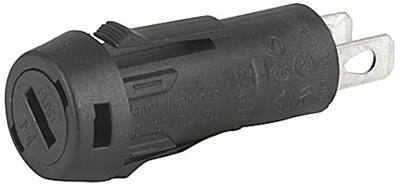

Bayonet lock cap with slot, type 3101.

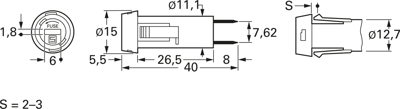

Technical attributes (type, connection type, for panel thickness (s)): 3101.0031, solder terminals, s 2.0 to 3.0 mm
Technical specifications
| For Fuse | 5 x 20 mm | |
| Version | geschlossen | |
| Connection | Lötanschluss | |
| Type of mounting | Snap-in | |
| Installation diameter | 12.5 mm | |
| Version of the cap | Schlitz | |
| Rated current | 10 A | |
| Rated voltage | 250 V | |
| Touch protection | PC2 | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85363010 |
| Original Packaging | Karton mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
