3101.0220 | SCHURTER

Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, 3101.0220

Order No.: 46G5812
EAN: 4099889126679
MPN:
3101.0220
Series: FPG2
SCHURTER

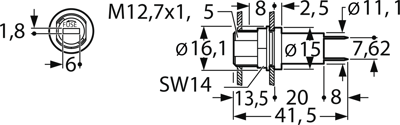

3101.0220 SCHURTER Fuse Holders Image 1

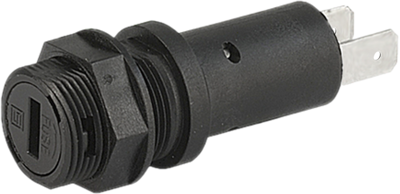

3101.0220 SCHURTER Fuse Holders Image 2
Image may differ
Unit Price (€ / pc.)
2.0944 € *
Available: 103 pcs.
Leadtime: 7 Weeks **
Total Price:
2.09 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0944 €
25 pcs.
1.7731 €
100 pcs.
1.6422 €
200 pcs.
1.5708 €
800 pcs.
1.4399 €
*incl. VAT plus shipping costs
**Subject to prior sale

Fuse holders for 5 x 20 mm G fuses, series FPG2, type Schurter 3101.

To IEC 60127-6, with bushing mount and bayonet lock cap; Rated voltage: 250 VAC. Rated current: 10 A (VDE), 16 A (UL/CSA). Socket material: thermoplastic, UL 94 V-0, black. Connections: tinned copper alloy, suitable for safety class I or II devices to IEC 61140. Touch protection category: PC2. Climate category: 40/085/21 to IEC 60068-1. Certifications: VDE, UL, CSA.

Degree of protection IP 40, type 3101.

Technical attributes (type, bayonet cap version, connection type): 3101.0220, slot, 4.8 x 0.5 mm tab terminals

Technical specifications
Connection plug-in connection
Version of the cap slotted
Version closed
Type of mounting central Mounting
Touch protection PC2
Installation diameter 12 mm
For Fuse 5 x 20 mm
Rated voltage 250 V
Rated current 10 A
Degree of protection (IP) IP40
Logistics
Country of origin CH
Customs tariff number 85363010
Original Packaging Carton with 100 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
