3101.0325 | SCHURTER

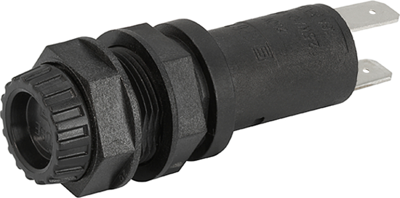

Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, 3101.0325
Unit Price (€ / pc.)
2.9155 € *
Available: 29 pcs.
Leadtime: 7 Weeks **
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9155 €
10 pcs.
2.6894 €
50 pcs.
2.4395 €
100 pcs.
2.2015 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fuse holders for 5 x 20 mm G fuses, series FPG2, type Schurter 3101.
To IEC 60127-6, with bushing mount and bayonet lock cap; Rated voltage: 250 VAC. Rated current: 10 A (VDE), 16 A (UL/CSA). Socket material: thermoplastic, UL 94 V-0, black. Connections: tinned copper alloy, suitable for safety class I or II devices to IEC 61140. Touch protection category: PC2. Climate category: 40/085/21 to IEC 60068-1. Certifications: VDE, UL, CSA.
Degree of protection IP 67, type 3101.
Technical attributes (type, bayonet cap version, connection type): 3101.0325, finger grip, 4.8 x 0.5 mm tab terminals
Technical specifications
| Connection | plug-in connection | |
| Version of the cap | finger grip | |
| Version | closed | |
| Type of mounting | central Mounting | |
| Touch protection | PC2 | |
| Installation diameter | 12 mm | |
| For Fuse | 5 x 20 mm | |
| Rated voltage | 250 V | |
| Rated current | 10 A | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
