3-103-705 | SCHURTER
2-stage filter, 50 to 60 Hz, 1 A, 250 V (DC), 250 VAC, 2.5 W, spring-cage terminal, 3-103-705
Unit Price (€ / pc.)
35.6167 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
35.62 € *
Price list
Quantity
Price per unit*
1 pcs.
35.6167 €
5 pcs.
33.4747 €
10 pcs.
31.1304 €
25 pcs.
28.6433 €
*incl. VAT plus shipping costs
**Subject to prior sale

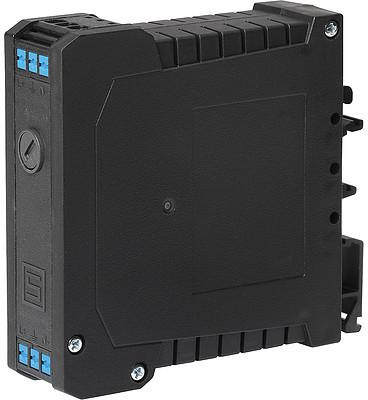

1-Phase line filter, 3-103-705, Schurter
AC/DC filter, 2-stage, DIN rail mounting, overcurrent and overvoltage protection
Features
- Very high attenuation
- Surge protection
- Fuseholder
- Especially designed for electric switch and control cabinets
- Suitable for medical equipment intended for permanently connection to the mains
Technical specifications
| ohmscher Widerstand | 780 mΩ | |
| Anschluss | Zugfederklemme | |
| Anzahl der Phasen | 1 | |
| Ausführung | 2-Stufen Filter | |
| Bemessungsspannung | 250 VAC | |
| integrierter Schalter | No | |
| Leistung | 2.5 W | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -40 °C | |
| Mit Sicherung | Yes | |
| Nennspannung (DC) | 250 V | |
| Nennstrom | 1 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
