3-104-862 | SCHURTER

1-stage filter, 50 to 60 Hz, 16 A, 300/520 VAC, screw connection, 3-104-862

Order No.: 75D3004
EAN: 4099889080636
MPN:
3-104-862
Series: FMAC NEO
SCHURTER

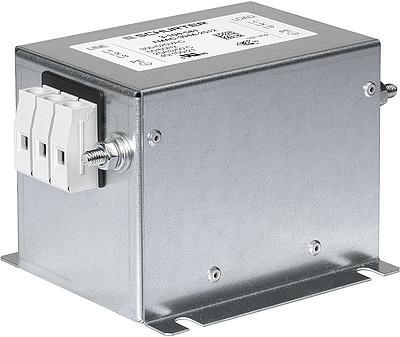

3-104-862 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
106.0528 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
106.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
106.0528 €

3-Phase AC/DC filter, 3-104-862, SCHURTER

The 3-104-862 is a 1-stage filter for 3-phase system. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Compact design with small footprint
  • Single-stage filter for high efficiency
  • Light weight design
  • Wide temperature range
  • Very high attenuation

Applications

  • Protection against interference voltage from the mains
  • Suitable for use in equipment
  • Especially designed for industrial application
Technical specifications
ohmic resistance 6.2 mΩ
Connection screw connection
Number of phases 3
Version 1-stage filter
Rated Voltage 300/520 VAC
integrated switch No
max. frequency 60 Hz
max. operating temperature 100 °C
min. frequency 50 Hz
min. operating temperature -40 °C
With fuse No
Rated current 16 A
Logistics
Country of origin RO
Customs tariff number 85363010
Original Packaging Carton with 1 piece
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
