3-109-430 | SCHURTER
1-stage filter, 50 to 60 Hz, 8 A, 277 V (DC), 277 VAC, faston plug 6.3 mm, 3-109-430
Unit Price (€ / pc.)
15.6247 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

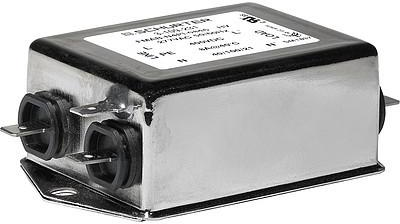

1-stage filter, 3-109-430, SCHURTER
Features
- Compact filter with high symmetrical attenuation
- For high AC- or DC-voltages
- Completely enclosed steel housing
- Optional overvoltage protection
Applications
- Suitable for appliances with protection class I
- Especially designed for applications with symmetrical noise caused by switching semiconductors
- Suitable for use in equipment
- Suitable for use in medical equipment
Technical specifications
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | 1-Stufen Filter | |
| Bemessungsspannung | 277 VAC | |
| integrierter Schalter | No | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -40 °C | |
| Mit Sicherung | No | |
| Nennspannung (DC) | 277 V | |
| Nennstrom | 8 A |
Download
Logistics
| Zolltarifnummer | 85363010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
