3-109-609 | SCHURTER

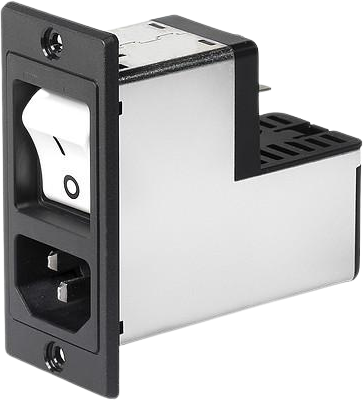

IEC plug C14, 50 to 60 Hz, 10 A, 250 VAC, faston plug 6.3 mm, 3-109-609
Order No.: 59P0888
EAN: 4099891529208
MPN:
3-109-609
DG12-C126F100C0-000-C6135-750-1000-00
Series: DG12
Unit Price (€ / pc.)
47.1121 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
47.11 € *
Price list
Quantity
Price per unit*
1 pcs.
47.1121 €
10 pcs.
43.3398 €
25 pcs.
39.8769 €
50 pcs.
36.2831 €
*incl. VAT plus shipping costs
**Subject to prior sale
IEC Appliance Inlet C14, 3-109-609, SCHURTER
Features
- Circuit breaker type TA35 2-pole
- Line filter
- Rocker orange illuminated
- V-Lock cord retaining
Applications
- Suitable for use in medical equipment
Technical specifications
| ohmscher Widerstand | 1 MΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Ausführung | IEC-Stecker-C14 | |
| Bemessungsspannung | 250 VAC | |
| integrierter Schalter | Yes | |
| Kapazität X|Y | X2 220 nF | |
| max. Frequenz | 60 Hz | |
| min. Frequenz | 50 Hz | |
| Mit Sicherung | Yes | |
| Nennstrom | 10 A |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85363010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
