3-123-511 | SCHURTER
AC filter, 50 to 60 Hz, 6 A, 250 VAC, 2.88 W, faston plug 6.3 mm, 3-123-511
Unit Price (€ / pc.)
31.773 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

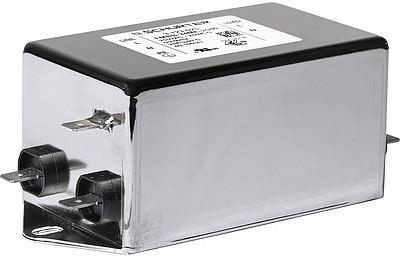

AC Filter, 3-123-511, SCHURTER
Features
- 2 stage
- Compact design
- Very light due to partial potting
- Completely closed steel housing
- Wide temperature range
Applications
- Frequency Converters
- Stepper Motor Drives
- UPS-Systems
- Inverters
- Suitable for use in equipment
Technical specifications
| ohmscher Widerstand | 40 mΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | AC Filter | |
| Bemessungsspannung | 250 VAC | |
| integrierter Schalter | No | |
| Leistung | 2.88 W | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -40 °C | |
| Mit Sicherung | No | |
| Nennstrom | 6 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Karton mit 15 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
