3-134-827 | SCHURTER

Filter, 50 to 60 Hz, 12 A, 250 VAC, faston plug 6.3 mm, 3-134-827

Order No.: 59P9856
EAN: 4099891538071
MPN:
3-134-827
Series: FMAB NEO
SCHURTER

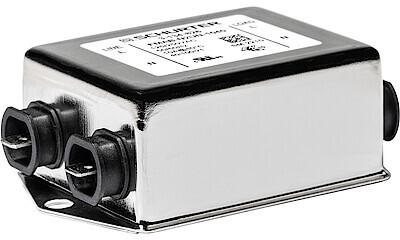

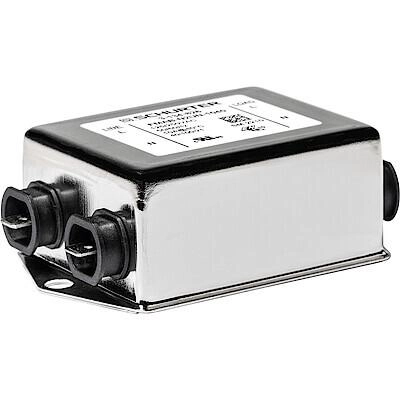

3-134-827 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
28.0007 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
28.00 € *
Price list
Quantity
Price per unit*
1 pcs.
28.0007 €
10 pcs.
26.0491 €
25 pcs.
24.2165 €
50 pcs.
22.2887 €
*incl. VAT plus shipping costs
**Subject to prior sale

AC filter, 3-134-827, SCHURTER

Features

  • Excellent symmetrical attenuation
  • Compact and cost optimized
  • Completely closed steel housing
  • Optional wire leads
  • High attenuation
  • 1-stage

Applications

  • Suitable for use in equipment
  • Suitable for use in medical equipment
Technical specifications
ohmic resistance 11 mΩ
Connection faston plug 6.3 mm
Number of phases 1
Version AC filter
Rated Voltage 250 VAC
integrated switch No
max. frequency 60 Hz
max. operating temperature 100 °C
min. frequency 50 Hz
min. operating temperature -40 °C
With fuse No
Rated current 12 A
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
