3-138-290 | SCHURTER
Filter, 50 to 60 Hz, 180 A, 300/520 VAC, screw connection, 3-138-290
Unit Price (€ / pc.)
323.5967 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

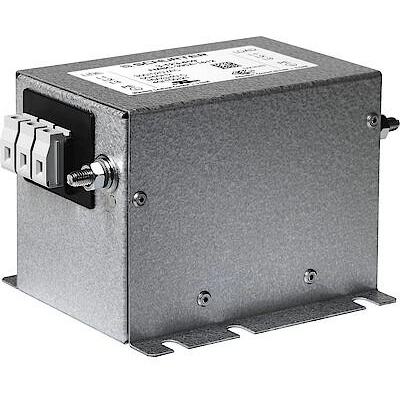

Single-stage filter, 3-138-290, SCHURTER
Features
- Compact design with small footprint
- Single-stage filter for high efficiency
- Light weight design
- Wide temperature range
- Very high attenuation
Applications
- Frequency converters
- Stepper motor drives
- UPS-Systems
- Inverters
- Suitable for use in equipment
Technical specifications
| ohmscher Widerstand | 0.1 mΩ | |
| Anschluss | Schraubanschluss | |
| Anzahl der Phasen | 3 | |
| Ausführung | 1-Stufen Filter | |
| Bemessungsspannung | 300/520 VAC | |
| integrierter Schalter | No | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -40 °C | |
| Mit Sicherung | No | |
| Nennstrom | 180 A |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Karton mit 1 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
