3-138-342 | SCHURTER

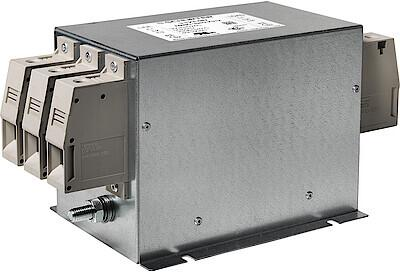

2-stage filter, 50 to 60 Hz, 180 A, 760 VAC, screw connection, 3-138-342
Unit Price (€ / pc.)
434.707 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
2-stage filter, 3-138-342, SCHURTER
Features
- Terminals for three phases and ground
- 2 stage
- Very high attenuation
- Compact design with small footprint
- Wide temperature range
Applications
- Frequency Converters
- Stepper Motor Drives
- UPS-Systems
- Inverters
- Suitable for use in equipment
Technical specifications
| ohmscher Widerstand | 0.4 mΩ | |
| Anschluss | Schraubanschluss | |
| Anzahl der Phasen | 3 | |
| Ausführung | 2-Stufen Filter | |
| Bemessungsspannung | 760 VAC | |
| integrierter Schalter | No | |
| max. Frequenz | 60 Hz | |
| min. Frequenz | 50 Hz | |
| Mit Sicherung | No | |
| Nennstrom | 180 A |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85363010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
