3-143-605 | SCHURTER

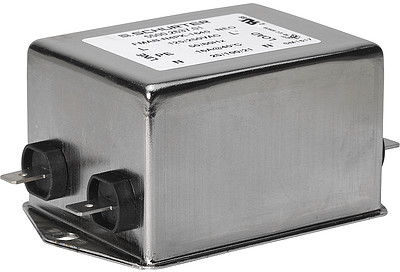

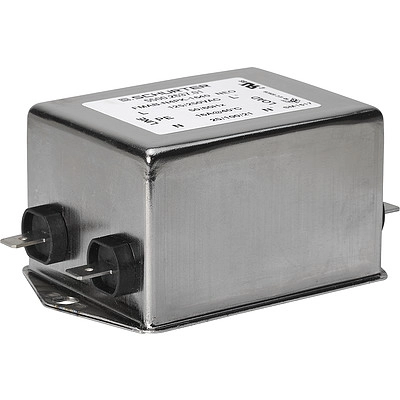

Suppressor filter, 50 to 60 Hz, 30 A, 250 VAC, faston plug 6.3 mm, 3-143-605
Unit Price (€ / pc.)
50.575 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
2-stage filter, 3-143-605, SCHURTER
AC Filter, High Symmetrical Attenuation.
Features
- 1-stage-line-filter with high attenuation
- Compact and cost optimized
- Completely closed steel housing
Applications
- Suitable for use in equipment
- Suitable for use in medical equipment
- Especially designed for applications with symmetrical noise caused by switching semiconductors
Technical specifications
| ohmscher Widerstand | 2.9 mΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | 1-Stufen Filter | |
| Bemessungsspannung | 250 VAC | |
| integrierter Schalter | No | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -40 °C | |
| Mit Sicherung | No | |
| Nennstrom | 30 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85363030 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
