3-150-018 | SCHURTER

Line filter, 50 to 60 Hz, 32 A, 520 VAC, screw connection, 3-150-018

Order No.: 41F1383
EAN: 4099891951672
MPN:
3-150-018
FPAC-3RUY-3212-HP
Series: FPAC RAIL

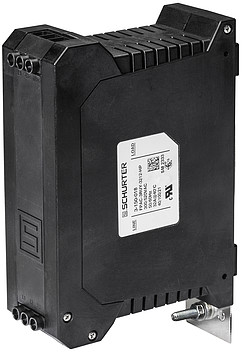

3-150-018 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
85.2873 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
85.29 € *
Price list
Quantity
Price per unit*
1 pcs.
85.2873 €
5 pcs.
78.9684 €
10 pcs.
74.5059 €
25 pcs.
70.2814 €
50 pcs.
66.9375 €
*incl. VAT plus shipping costs
**Subject to prior sale

1-stage filter, 3-150-018, SCHURTER

The 3-150-018 is a standard high attenuation 1-stage filter for 3-phase industrial applications in the control cabinet. This product is suitable for use in equipment according to IEC/UL 62368-1.

Applications

  • Voltage rating 520 VAC for world wide acceptance
  • Machine control systems
  • Switching power supplies
  • Inverters
Technical specifications
ohmscher Widerstand 3.7 mΩ
Anschluss Schraubanschluss
Anzahl der Phasen 3
Ausführung 1-Stufen Filter
Bemessungsspannung 520 VAC
integrierter Schalter No
max. Frequenz 60 Hz
max. Temperatur 100 °C
min. Frequenz 50 Hz
min. Temperatur -40 °C
Mit Sicherung No
Nennstrom 32 A
Logistics
Ursprungsland RO
Zolltarifnummer 85363030
Originalverpackung Karton mit 1 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
