4302.5331 | SCHURTER
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, faston plug 6.3 mm, 4302.5331
Unit Price (€ / pc.)
32.4751 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
32.48 € *
Price list
Quantity
Price per unit*
1 pcs.
32.4751 €
5 pcs.
30.2022 €
10 pcs.
28.0959 €
25 pcs.
25.8468 €
*incl. VAT plus shipping costs
**Subject to prior sale

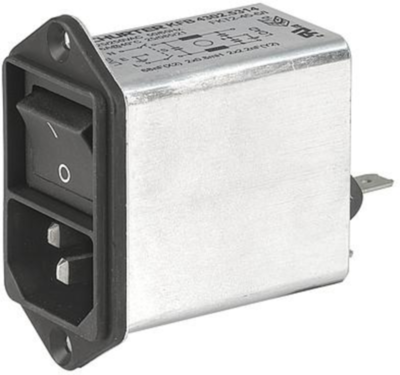

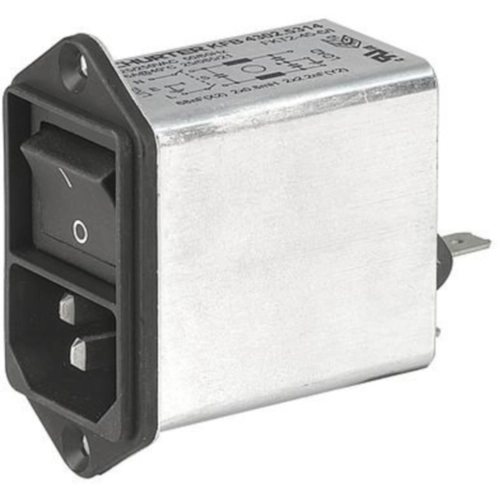

IEC appliance inlet, 4302.5331, SCHURTER
The 4302.5331 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Line switch non-illuminated
- Line Switch 2-pole
- With EMC-shield
- Screw-on mounting front side
- Suitable for use in medical equipment
Technical specifications
| Connection | faston plug 6.3 mm | |
| Number of phases | 1 | |
| Version | IEC plug C14 | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 10 mH | |
| integrated switch | Yes | |
| Capacity X|Y | X2 68 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 1 A |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
