4303.5004 | SCHURTER

IEC plug C14, 50 to 60 Hz, 6 A, 250 VAC, 800 µH, faston plug 4.8 mm, 4303.5004

Order No.: 75D3076
EAN: 4099889080933
MPN:
4303.5004
Series: KFC
SCHURTER

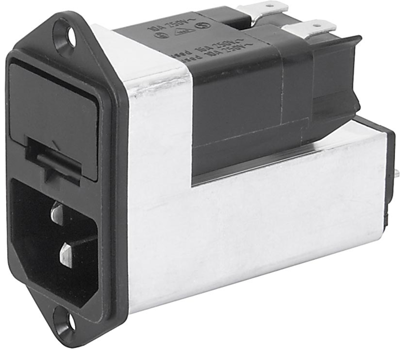

4303.5004 SCHURTER Interference suppression filter Image 1
4303.5004 SCHURTER Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
23.6929 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
23.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
23.6929 €

EMC filters with add-on function combination series KFC, type Schurter 4303.

Consists of the filter, a double-pole fuse holder cartridge, IEC appliance connector with protection class 1 and touch-proof G fuse holder 5.0 x 20 mm or US-type fuse holder 6.3 x 32 mm; Mounting position: vertical. Color: black. Rated voltage: 250 VAC 50/60 Hz. Capacitance: 0.068 µF (X), 2200 pF (Y). Connections: 4.8 mm tab terminals. Certifications: ENEC 10, VDE, UL.

Technical attributes (type, rated current, rated inductance): 4303.5004, 6.0 A, 2 x 0.8 mH

Technical specifications
Connection faston plug 4.8 mm
Number of phases 1
Version IEC plug C14
Rated Voltage 250 VAC
Inductance per line 800 µH
integrated switch Yes
Capacity X|Y X2 68 nF, Y2 2.2 nF
max. frequency 60 Hz
max. operating temperature 85 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse Yes
Rated current 6 A
Logistics
Country of origin SK
Customs tariff number 85363010
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
