4304.4022 | SCHURTER
IEC plug C14, 50 to 60 Hz, 2 A, 250 VAC, 1.6 W, 4 mH, faston plug 6.3 mm, 4304.4022
Unit Price (€ / pc.)
43.3636 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
43.36 € *
Price list
Quantity
Price per unit*
1 pcs.
43.3636 €
10 pcs.
39.8888 €
25 pcs.
36.6996 €
50 pcs.
33.3914 €
*incl. VAT plus shipping costs
**Subject to prior sale

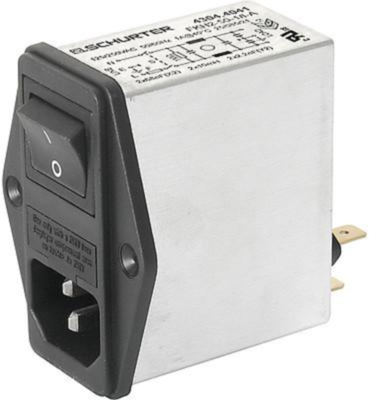

IEC appliance inlet, 4304.4022, SCHURTER
The 4304.4022 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Compact design with optimal shielding
- Plug removal necessary for fuse-link replacement
- With EMC-shield
- Line Switch 2-pole
- Suitable for use in medical equipment
Technical specifications
| ohmscher Widerstand | 1 MΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Ausführung | IEC-Stecker-C14 | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 4 mH | |
| integrierter Schalter | Yes | |
| Kapazität X|Y | X2 68 nF, Y2 2,2 nF | |
| Leistung | 1.6 W | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 85 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | Yes | |
| Nennstrom | 2 A |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85363010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
