5145.0885.835.21 | SCHURTER
IEC inlet filter C18, 50 to 60 Hz, 15 A, 250 VAC, faston plug 6.3 mm, 5145.0885.835.21
Order No.: 59P0075
EAN: 4099891518967
MPN:
5145.0885.835.21
5145-ABDWF150C0-000-831-30-21
Series: 5145
Unit Price (€ / pc.)
36.6044 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

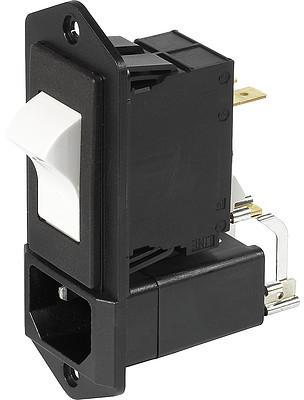

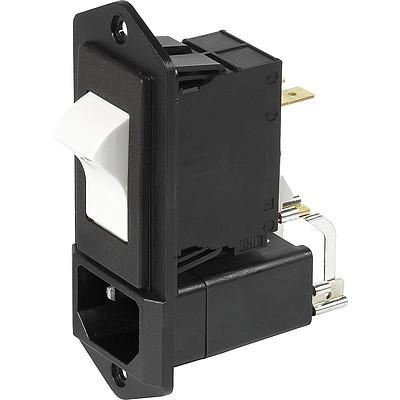

IEC plug C18, 5145.0885.835.21, SCHURTER
Features
- Compact power entry module with circuit breaker
- High configurability
- Easy assembly with prewired modules
- Circuit breaker type TA45
Applications
- Suitable for appliances with protection class I or II
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | faston plug 6.3 mm | |
| Version | IEC inlet filter C18 | |
| Rated Voltage | 250 VAC | |
| integrated switch | Yes | |
| Capacity X|Y | X 47 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 55 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -10 °C | |
| With fuse | No | |
| Rated current | 15 A |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
