5500.2090 | SCHURTER
AC filter, 50 to 60 Hz, 2 A, 250 VAC, 4 mH, faston plug 6.3 mm, 5500.2090
Unit Price (€ / pc.)
12.4593 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
12.46 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4593 €
10 pcs.
11.3407 €
50 pcs.
10.4363 €
100 pcs.
9.3891 €
*incl. VAT plus shipping costs
**Subject to prior sale

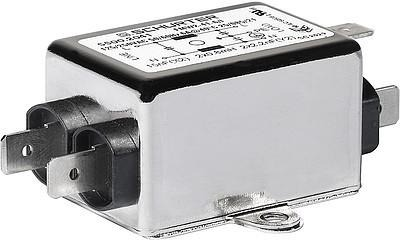

1-Phase line filter, 5500.2090, SCHURTER
The 5500.2090 is an AC filter cost optimized. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Designed for standard application
- Protection against interference voltage from the mains
- For standard and industrial application
- Suitable for use in equipment
Technical specifications
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | AC Filter | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 4 mH | |
| integrierter Schalter | No | |
| Kapazität X|Y | X2 68 nF, Y2 470 pF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennstrom | 2 A |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85363010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 25 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
