5707.0801.313.21 | SCHURTER
IEC plug C14, 50 to 60 Hz, 8 A, 250 VAC, 1.2 W, 400 µH, faston plug 6.3 mm, 5707.0801.313.21
Unit Price (€ / pc.)
29.8333 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
29.83 € *
Price list
Quantity
Price per unit*
1 pcs.
29.8333 €
10 pcs.
27.7508 €
25 pcs.
25.8111 €
50 pcs.
23.7405 €
*incl. VAT plus shipping costs
**Subject to prior sale

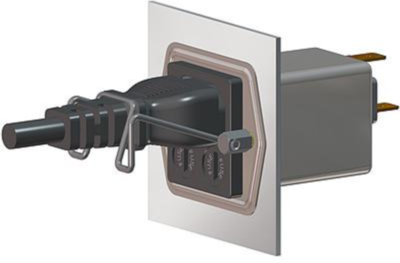

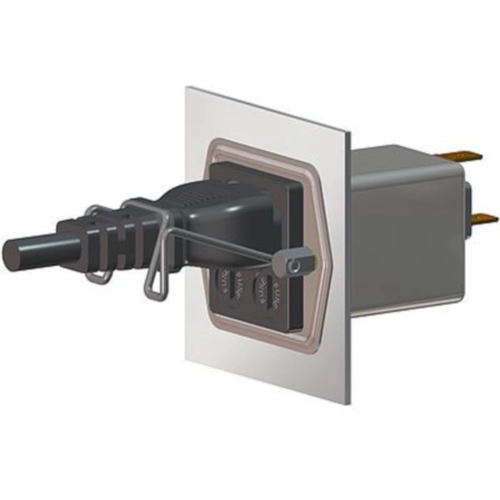

IEC appliance inlet, 5707.0801.313.21, SCHURTER
The 5707.0801.313.21 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Sealed power entry module
- Strong in Design and Safety
- Screw type fuse carrier, slotted
- With EMC-shield
- Suitable for use in medical equipment
- IP 65 protection to the appliance
- IP 54 protection to the cord connection
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | faston plug 6.3 mm | |
| Version | IEC plug C14 | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 400 µH | |
| integrated switch | No | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF | |
| Power | 1.2 W | |
| max. frequency | 60 Hz | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | Yes | |
| Rated current | 8 A |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
