8843.8323.1 | SCHURTER

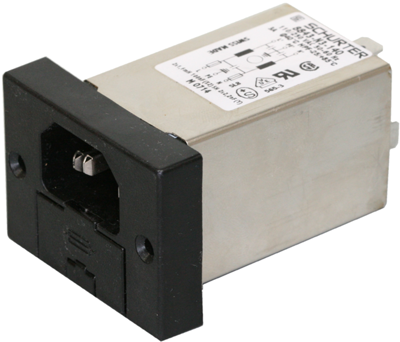

IEC plug C14, 50 to 60 Hz, 3 A, 250 VAC, 1.6 mH, faston plug 6.3 mm, 8843.8323.1
Unit Price (€ / pc.)
62.3679 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
EMC filters with add-on function combination series 8843, type Schurter 8843.
Consists of the filter, 2 receptacles for fuse holder inserts (5 x 20 mm) and an appliance connector for connection in locations with temperatures to 70 °C; Rated voltage: 250 VAC. Rated capacitances: X2 = 47 nF, Y = 2.2 nF. 6.3 mm tab terminals, solderable. Test logos: VDE, UL, CSA. . The fuse holder cartridges are available on separate order.
Technical attributes (type, rated current, rated inductance): 8843.8323, 3.0 A, 2 x 1.6 mH
Technical specifications
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | IEC-Stecker-C14 | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 1.6 mH | |
| integrierter Schalter | No | |
| Kapazität X|Y | X2 47 nF, Y 2,2 nF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 70 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | Yes | |
| Nennstrom | 3 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85363010 |
| Originalverpackung | Karton mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
