C20F.0014 | SCHURTER

IEC plug C20, 50 to 60 Hz, 16 A, 250 VAC, 300 µH, solder connection, C20F.0014

Order No.: 75D3034
EAN: 4099889080803
MPN:
C20F.0014
Series: C20F
SCHURTER

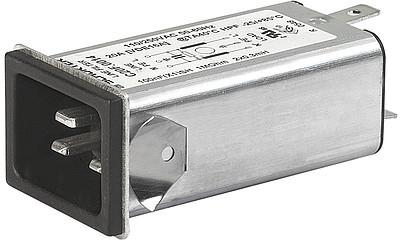

C20F.0014 SCHURTER Interference suppression filter
Image may differ
Unit Price (€ / pc.)
24.3831 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
24.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
40 pcs.
24.3831 €

IEC appliance inlet, C20F.0014, SCHURTER

The C20F.0014 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.

Features

  • Attractive flat front design
  • Highly resistant since fully potted
  • V-Lock cord retaining
  • Interrupts ground loops
  • Compact design with optimal shielding
  • Universal line filter for standard application
  • Suitable for use in medical equipment
Technical specifications
ohmic resistance 1 MΩ
Connection solder connection
Version IEC plug C20
Rated Voltage 250 VAC
Inductance per line 300 µH
integrated switch No
Capacity X|Y X1 100 nF
max. frequency 60 Hz
max. operating temperature 85 °C
min. frequency 50 Hz
min. operating temperature -25 °C
With fuse No
Rated current 16 A
Logistics
Country of origin CZ
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
