C20F.0102 | SCHURTER
IEC plug C20, 50 to 60 Hz, 16 A, 250 VAC, 300 µH, faston plug 6.3 mm, C20F.0102
Unit Price (€ / pc.)
24.5497 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

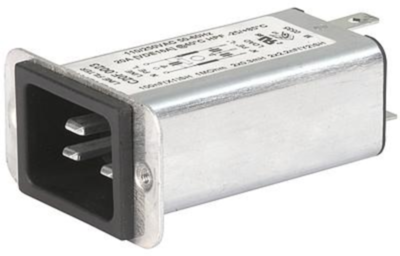

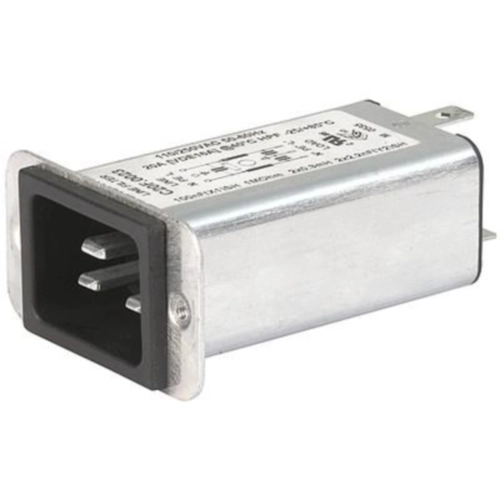

IEC appliance inlet, C20F.0102, SCHURTER
The C20F.0102 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Attractive flat front design
- Highly resistant since fully potted
- V-Lock cord retaining
- Interrupts ground loops
- Compact design with optimal shielding
- Universal line filter for standard application
- Suitable for use in medical equipment
Technical specifications
| ohmscher Widerstand | 1 MΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Ausführung | IEC-Stecker-C20 | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 300 µH | |
| integrierter Schalter | No | |
| Kapazität X|Y | X2 100 nF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 85 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennstrom | 16 A |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85363010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
