DC22.1121.111 | SCHURTER
IEC plug C14, 50 to 60 Hz, 1 A, 250 VAC, 10 mH, faston plug 6.3 mm, DC22.1121.111
Unit Price (€ / pc.)
21.4319 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

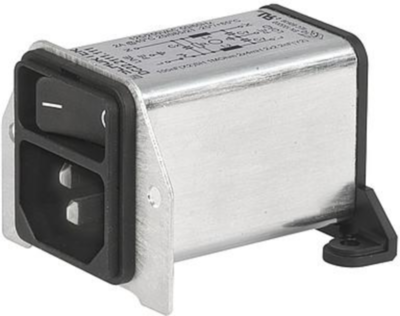

IEC appliance inlet, DC22.1121.111, SCHURTER
The DC22.1121.111 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Ultra-compact design
- Line switch non-illuminated or illuminated
- With EMC-shield
- Especially suitable for use in switching power supplies
- Suitable for use in medical equipment
- Screw-on mounting on PCB
Technical specifications
| ohmscher Widerstand | 1 MΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Ausführung | IEC-Stecker-C14 | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 10 mH | |
| integrierter Schalter | Yes | |
| Kapazität X|Y | X2 100 nF, Y2 2,2 nF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 85 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennstrom | 1 A |
Download
Logistics
| Ursprungsland | SK |
| Zolltarifnummer | 85363010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
