DD22.4321.1111 | SCHURTER
IEC plug C14, 50 to 60 Hz, 4 A, 250 VAC, 1.5 mH, faston plug 6.3 mm, DD22.4321.1111
Unit Price (€ / pc.)
30.9162 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
IEC appliance inlet, DD22.4321.1111, SCHURTER

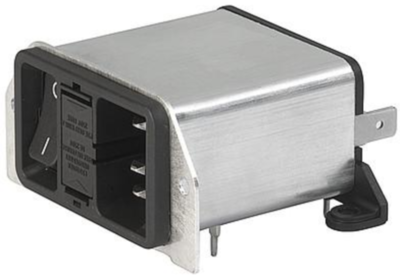

The DD22.4321.1111 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Most compact power entry module
- Attractive flat design
- Switch for highest inrush current
- V-Lock cord retaining
- Ultra-compact design
- Ideal for application with high transient loads
- Suitable for use in medical equipment
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | faston plug 6.3 mm | |
| Version | IEC plug C14 | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 1.5 mH | |
| integrated switch | Yes | |
| Capacity X|Y | X2 100 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | Yes | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85363010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
