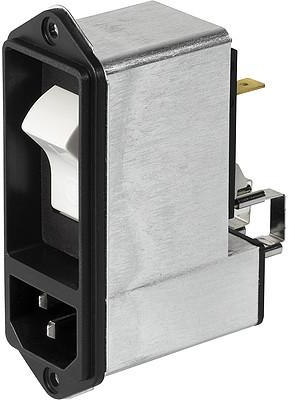

DF12.0880.2110.121 | SCHURTER
IEC inlet filter C14, 50 to 60 Hz, 2 A, 250 VAC, faston plug 6.3 mm, DF12.0880.2110.121
Order No.: 59P0466
EAN: 4099891526702
MPN:
DF12.0880.2110.121
DF12-ABTWFJ10C0-000-2131-00-21
Series: DF12
Unit Price (€ / pc.)
37.723 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
IEC plug C14, DF12.0880.2110.121, SCHURTER
Features
- Quick connect terminals 6.3 x 0.8 mm
- Circuit breaker type TA45
Applications
- Suitable for use in medical equipment
- Suitable for appliances with protection class I
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | faston plug 6.3 mm | |
| Version | IEC inlet filter C14 | |
| Rated Voltage | 250 VAC | |
| integrated switch | Yes | |
| Capacity X|Y | X 100 nF, Y 2.2 nF | |
| max. frequency | 60 Hz | |
| max. operating temperature | 55 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -10 °C | |
| With fuse | No | |
| Rated current | 2 A |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
