EC12.2201.001.21 | SCHURTER
IEC plug C20, 50 to 60 Hz, 16 A, 250 VAC, 600 µH, faston plug 6.3 mm, EC12.2201.001.21
Unit Price (€ / pc.)
34.2125 € *
Available: 52 pcs.
Leadtime: 10 Weeks **
Total Price:
34.21 € *
Price list
Quantity
Price per unit*
1 pcs.
34.2125 €
5 pcs.
32.1657 €
20 pcs.
30.5235 €
40 pcs.
29.7024 €
160 pcs.
28.0602 €
*incl. VAT plus shipping costs
**Subject to prior sale

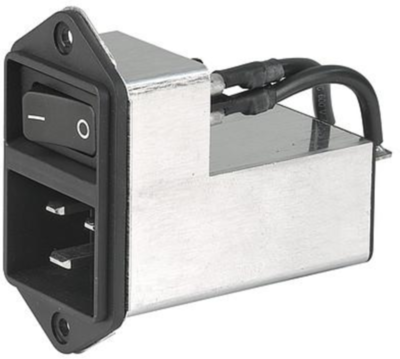

IEC appliance inlet, EC12.2201.001.21, SCHURTER
The EC12.2201.001.21 is a power entry module with line filter. This product is designed for use in industrial environments, also has approval from independent testing bodies according to national and international standards.
Features
- Line switch non-illuminated
- With EMC-shield
- Ideal for application with high transient loads
- Suitable for use in medical equipment
- Screw-on mounting front side
Technical specifications
| ohmscher Widerstand | 1 MΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Ausführung | IEC-Stecker-C20 | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 600 µH | |
| integrierter Schalter | Yes | |
| Kapazität X|Y | X2 100 nF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 85 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennstrom | 16 A |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85363010 |
| MSL | MSL 1 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
