EF12.3103.2110.01 | SCHURTER

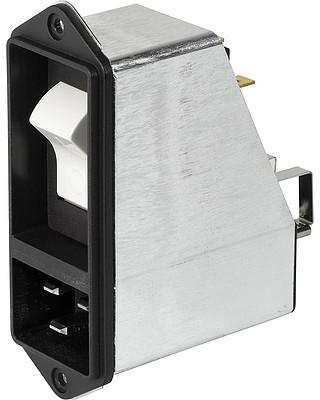

IEC plug C20, 50 to 60 Hz, 16 A, 250 VAC, 0.6 mH, faston plug 6.3 mm, EF12.3103.2110.01
Unit Price (€ / pc.)
48.3854 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
IEC plug C20, EF12.3103.2110.01, SCHURTER
Features
- Quick connect terminal 6.3 x 0.8 mm
- Protection class I
- With circuit breaker type TA45
- With EMC-shield
- With line filter
Applications
- Suitable for appliances with protection class I
- Suitable for use in medical equipment
Technical specifications
| ohmscher Widerstand | 1 MΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Ausführung | IEC-Stecker-C20 | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 0.6 mH | |
| integrierter Schalter | Yes | |
| Kapazität X|Y | X 100 nF, Y 2,2 nF | |
| max. Frequenz | 60 Hz | |
| min. Frequenz | 50 Hz | |
| Mit Sicherung | No | |
| Nennstrom | 16 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
